Elliptical Interface Redesign

VCD 7 | Interaction Design In order to improve upon an existing interface, I redesigned the elliptical in my dorm's workout room. While the machine functions at a basic level, the interface is neither attractive nor intuitive. Users have difficulty accessing settings due to the confusing display, and logical functions are not readily apparent due to the I saw an opportunity to redesign the hierarchy of the interactive components, as the groupings were very illogical and it made the control surface difficult and confusing to use.

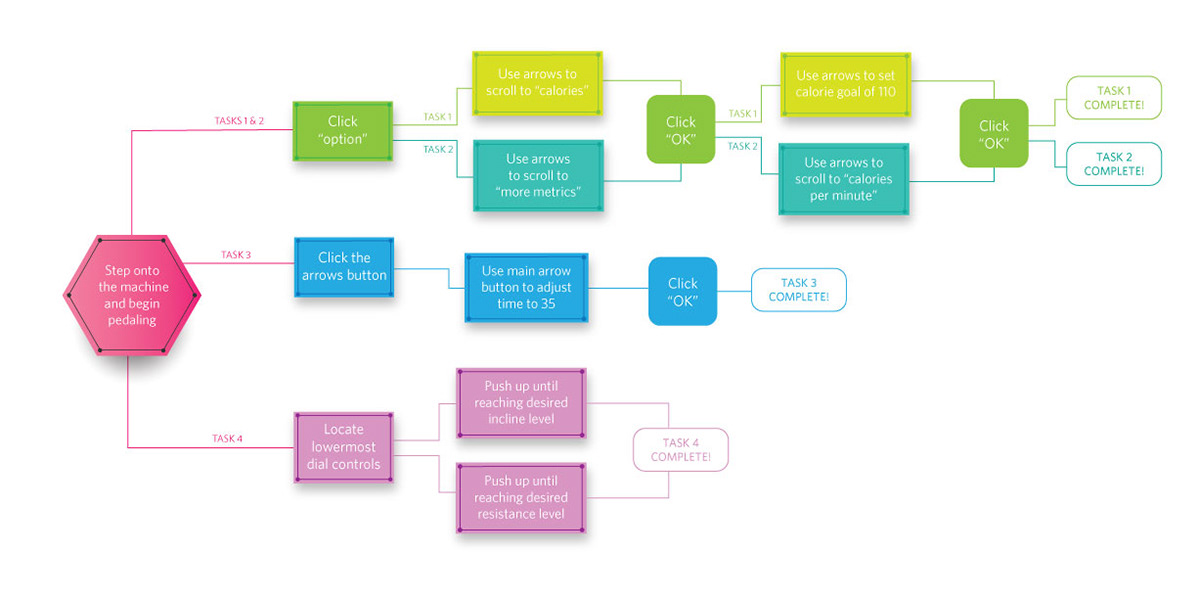

I began the design process by examining the existing interface and noting the issues that a series of volunteer users came across while using the elliptical. I then created task flow diagrams to display the current steps that were necessary for a user to perform various tasks.

I then asked two volunteers to help test the existing interface, one with elliptical experience, and one without, and identified their main issues with the interface.

The evaluative research process, which shows final product testing and a closer look at the details of the digital interface, can be viewed below.
